做主机测评或者是使用国外VPS服务器过程当中,经常会用到回程路由追踪测试脚本来测试国外服务器回国的线路情况,关于此类的脚本有很多,主机玖玖也分享过几个脚本,关于以前分享的“Linux服务器一键回程路由测试脚本”文章后面会介绍,有兴趣的到文章后面查看即可。
这里博主再分享记录一个来自Chennhaoo一键回程路由测试脚本,可以一键测试国外Linux系统服务器、云服务器、VPS服务器到国内电信、联通、移动三网的回程线路情况,同时支持根据自己的需求选择中文或者英文显示测试结果,同时可以选择BestTrace或者Nexttrace两种模式来进行回程路由追踪测试,所以使用起来还是比较方便的。
并且支持主机玖玖针对作者的脚本进行了测试节点的修改,修改了测试节点都可正常测试和完整显示,鉴于这个脚本使用起来比较方面,后续博主也会根据情况即时更新失效的测试节点,以保证脚本能正常使用~!其他的都是根据Chennhaoo脚本原版没有任何改动。

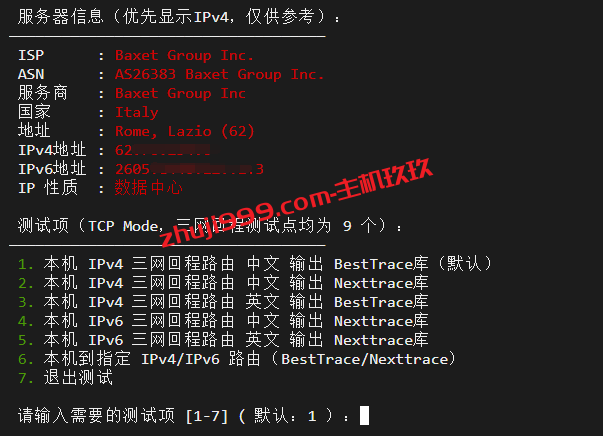

下面是Chennhaoo一键回程路由测试脚本功能展示图片:
一、Chennhaoo一键回程路由测试脚本执行命令
Chennhaoo一键回程路由测试脚本支持在CentOS、Debian、Ubuntu系统一键测试国内三网回程路由情况。如果需要测试只需通过SSH工具连接自己的服务器,然后执行下面命令即可。
Centos先执行下面命令装wget:
yum -y install wget
Debian/Ubuntu先执行下面命令装wget:
apt install -y wget
1、Chennhaoo一键回程路由测试脚本原版测试命令:
wget -N --no-check-certificate https://raw.githubusercontent.com/Chennhaoo/Shell_Bash/master/AutoTrace.sh && chmod +x AutoTrace.sh && bash AutoTrace.sh
2、主机玖玖修改版Chennhaoo一键回程路由测试脚本原版测试命令:
此脚本没有对原版脚本做过多的改动,只是修复了测试节点而已,而且只是修复了IPv4测试节点、IPv6也没有进行修改。所以建议选择原版命令更好!
wget -N --no-check-certificate https://raw.githubusercontent.com/zhuji9999/Shell_Bash/master/AutoTrace.sh && chmod +x AutoTrace.sh && bash AutoTrace.sh
作者项目地址:https://github.com/Chennhaoo/Shell_Bash
二、Chennhaoo一键回程路由测试脚本测试结果展示
下面测试结果展示都是中文显示测试结果。是BestTrace和Nexttrace两种模式的结果。相对来说两个模式测试结果通过中文展示是比较直接的,更容易看懂线路!
1、BestTrace模式完整测试结果展示:
Num:1/9 Traceroute to 中国 广州 电信 (TCP Mode, Max 30 Hop, IPv4) ============================================================ traceroute to 14.215.116.1 (14.215.116.1), 30 hops max, 32 byte packets 1 91.201.64.57 0.47 ms AS56630 意大利, 西西里大区, 巴勒莫广域市, melbicom.net 2 195.22.198.24 0.62 ms AS6762 意大利, 西西里大区, 巴勒莫广域市, tisparkle.com 3 195.22.208.75 33.59 ms AS6762 德国, 黑森州, 法兰克福, tisparkle.com 4 89.221.34.161 44.79 ms AS6762 德国, 黑森州, 法兰克福, tisparkle.com 5 202.97.98.178 287.79 ms AS4134 中国, 广东, 广州, chinatelecom.com.cn, 电信 6 * 7 * 8 * 9 113.96.4.230 298.88 ms AS4134 中国, 广东, 广州, chinatelecom.com.cn, 电信 10 183.56.129.10 286.53 ms AS4134 中国, 广东, 广州, chinatelecom.com.cn, 电信 11 14.215.116.1 286.14 ms AS4134 中国, 广东, 广州, chinatelecom.com.cn, 电信 Num:2/9 Traceroute to 中国 江苏 电信 (TCP Mode, Max 30 Hop, IPv4) ============================================================ traceroute to 58.215.144.100 (58.215.144.100), 30 hops max, 32 byte packets 1 91.201.64.57 0.44 ms AS56630 意大利, 西西里大区, 巴勒莫广域市, melbicom.net 2 195.22.198.24 0.62 ms AS6762 意大利, 西西里大区, 巴勒莫广域市, tisparkle.com 3 195.22.208.73 32.57 ms AS6762 意大利, 伦巴第大区, 米兰广域市, tisparkle.com 4 89.221.34.161 42.88 ms AS6762 德国, 黑森州, 法兰克福, tisparkle.com 5 * 6 * 7 * 8 * 9 58.215.128.58 319.85 ms AS23650 中国, 江苏, 无锡, chinatelecom.com.cn, 电信 10 61.177.113.94 294.42 ms AS23650 中国, 江苏, 无锡, chinatelecom.com.cn, 电信 11 221.228.1.250 312.55 ms AS4134 中国, 江苏, 无锡, chinatelecom.com.cn, 电信 12 * 13 * 14 * 15 58.215.144.100 288.02 ms AS23650 中国, 江苏, 无锡, chinatelecom.com.cn, 电信 Num:3/9 Traceroute to 中国 北京 电信 (TCP Mode, Max 30 Hop, IPv4) ============================================================ traceroute to 219.141.147.210 (219.141.147.210), 30 hops max, 32 byte packets 1 91.201.64.57 0.51 ms AS56630 意大利, 西西里大区, 巴勒莫广域市, melbicom.net 2 195.22.198.24 0.59 ms AS6762 意大利, 西西里大区, 巴勒莫广域市, tisparkle.com 3 195.22.208.73 30.37 ms AS6762 意大利, 伦巴第大区, 米兰广域市, tisparkle.com 4 89.221.34.161 39.26 ms AS6762 德国, 黑森州, 法兰克福, tisparkle.com 5 * 6 202.97.12.133 273.79 ms AS4134 中国, 北京, chinatelecom.com.cn, 电信 7 * 8 * 9 106.120.254.2 270.94 ms AS4847 中国, 北京, chinatelecom.com.cn, 电信 10 219.141.147.210 299.65 ms AS4847 中国, 北京, chinatelecom.com.cn, 电信 Num:4/9 Traceroute to 中国 福州 联通 (TCP Mode, Max 30 Hop, IPv4) ============================================================ traceroute to 36.248.43.210 (36.248.43.210), 30 hops max, 32 byte packets 1 91.201.64.57 0.76 ms AS56630 意大利, 西西里大区, 巴勒莫广域市, melbicom.net 2 195.22.198.24 0.73 ms AS6762 意大利, 西西里大区, 巴勒莫广域市, tisparkle.com 3 * 4 219.158.40.49 174.51 ms AS4837 美国, 加利福尼亚州, 洛杉矶, chinaunicom.com, 联通 5 219.158.98.17 343.19 ms AS4837 中国, 北京, chinaunicom.com, 联通 6 219.158.3.177 333.33 ms AS4837 中国, 北京, chinaunicom.com, 联通 7 * 8 219.158.18.238 384.83 ms AS4837 中国, 福建, 厦门, chinaunicom.com, 联通 9 58.22.96.214 373.43 ms AS4837 中国, 福建, 福州, chinaunicom.com, 联通 10 * 11 * 12 * 13 36.248.43.210 383.10 ms AS4837 中国, 福建, 福州, chinaunicom.com, 联通 Num:5/9 Traceroute to 中国 无锡 联通 (TCP Mode, Max 30 Hop, IPv4) ============================================================ traceroute to 153.35.105.70 (153.35.105.70), 30 hops max, 32 byte packets 1 91.201.64.57 0.47 ms AS56630 意大利, 西西里大区, 巴勒莫广域市, melbicom.net 2 195.22.198.24 0.80 ms AS6762 意大利, 西西里大区, 巴勒莫广域市, tisparkle.com 3 89.221.40.141 183.14 ms AS6762 美国, 加利福尼亚州, 洛杉矶, tisparkle.com 4 219.158.33.189 183.80 ms AS4837 美国, 加利福尼亚州, 洛杉矶, chinaunicom.com, 联通 5 219.158.17.81 336.55 ms AS4837 中国, 北京, chinaunicom.com, 联通 6 219.158.3.49 328.97 ms AS4837 中国, 北京, chinaunicom.com, 联通 7 219.158.18.69 345.67 ms AS4837 中国, 北京, chinaunicom.com, 联通 8 219.158.100.58 351.64 ms AS4837 中国, 江苏, 南京, chinaunicom.com, 联通 9 153.35.77.58 345.89 ms AS140716 中国, 江苏, 无锡, chinaunicom.com, 联通 10 * 11 * 12 11.184.62.45 369.31 ms AS749 美国, defense.gov 13 153.35.105.70 350.55 ms AS140716 中国, 江苏, 无锡, chinaunicom.com, 联通 Num:6/9 Traceroute to 中国 北京 联通 (TCP Mode, Max 30 Hop, IPv4) ============================================================ traceroute to 202.106.50.1 (202.106.50.1), 30 hops max, 32 byte packets 1 91.201.64.57 0.45 ms AS56630 意大利, 西西里大区, 巴勒莫广域市, melbicom.net 2 195.22.198.24 0.61 ms AS6762 意大利, 西西里大区, 巴勒莫广域市, tisparkle.com 3 89.221.35.144 202.68 ms AS6762 美国, 加利福尼亚州, 洛杉矶, tisparkle.com 4 219.158.40.49 174.86 ms AS4837 美国, 加利福尼亚州, 洛杉矶, chinaunicom.com, 联通 5 219.158.16.93 336.69 ms AS4837 中国, 北京, chinaunicom.com, 联通 6 219.158.9.214 335.22 ms AS4837 中国, 北京, chinaunicom.com, 联通 7 219.158.9.201 329.23 ms AS4837 中国, 北京, chinaunicom.com, 联通 8 * 9 202.106.50.1 342.50 ms AS4808 中国, 北京, chinaunicom.com, 联通 Num:7/9 Traceroute to 中国 贵阳 移动 (TCP Mode, Max 30 Hop, IPv4) ============================================================ traceroute to 211.139.0.10 (211.139.0.10), 30 hops max, 32 byte packets 1 91.201.64.57 0.48 ms AS56630 意大利, 西西里大区, 巴勒莫广域市, melbicom.net 2 195.22.198.24 0.68 ms AS6762 意大利, 西西里大区, 巴勒莫广域市, tisparkle.com 3 195.22.216.29 108.26 ms AS6762 美国, 新泽西州, 纽瓦克, tisparkle.com 4 * 5 62.115.135.132 107.53 ms AS1299 美国, 纽约州, 纽约, telia.com 6 80.91.246.162 127.43 ms AS1299 美国, 伊利诺伊州, 芝加哥, telia.com 7 62.115.132.155 193.41 ms AS1299 美国, 华盛顿州, 西雅图, telia.com 8 62.115.171.221 191.16 ms AS1299 美国, 华盛顿州, 西雅图, telia.com 9 223.120.6.53 181.57 ms AS58453 美国, 华盛顿州, 西雅图, chinamobile.com, 移动 10 * 11 221.183.89.170 385.49 ms AS9808 中国, 上海, chinamobile.com, 移动 12 221.183.89.174 390.17 ms AS9808 中国, 上海, chinamobile.com, 移动 13 221.183.89.46 444.48 ms AS9808 中国, 上海, chinamobile.com, 移动 14 221.183.89.69 365.36 ms AS9808 中国, 上海, chinamobile.com, 移动 15 211.139.0.10 382.19 ms AS9808 中国, 贵州, 贵阳, chinamobile.com, 移动 Num:8/9 Traceroute to 中国 南京 移动 (TCP Mode, Max 30 Hop, IPv4) ============================================================ traceroute to 39.134.69.205 (39.134.69.205), 30 hops max, 32 byte packets 1 91.201.64.57 0.56 ms AS56630 意大利, 西西里大区, 巴勒莫广域市, melbicom.net 2 195.22.198.24 1.44 ms AS6762 意大利, 西西里大区, 巴勒莫广域市, tisparkle.com 3 195.22.196.7 28.38 ms AS6762 意大利, 伦巴第大区, 米兰广域市, tisparkle.com 4 62.115.149.0 44.96 ms AS1299 德国, 黑森州, 法兰克福, telia.com 5 62.115.114.90 46.54 ms AS1299 德国, 黑森州, 法兰克福, telia.com 6 62.115.123.13 44.63 ms AS1299 法国, 法兰西岛大区, 巴黎, telia.com 7 62.115.133.238 58.66 ms AS1299 英国, 伦敦, telia.com 8 62.115.112.63 51.22 ms AS1299 英国, 伦敦, telia.com 9 62.115.171.223 52.61 ms AS1299 英国, 伯克郡, 斯劳, telia.com 10 223.120.10.197 46.18 ms AS58453 英国, 伦敦, chinamobile.com, 移动 11 223.120.15.26 577.77 ms AS58453 中国, 上海, chinamobile.com, 移动 12 * 13 * 14 * 15 221.183.149.49 565.22 ms AS9808 中国, 江苏, 南京, chinamobile.com, 移动 16 221.183.59.54 553.37 ms AS9808 中国, 江苏, 南京, chinamobile.com, 移动 17 * 18 183.207.20.174 606.74 ms AS56046 中国, 江苏, 南京, chinamobile.com, 移动 19 183.207.32.154 589.58 ms AS56046 中国, 江苏, 南京, chinamobile.com, 移动 20 39.134.69.205 598.61 ms AS56046 中国, 江苏, 南京, chinamobile.com, 移动 Num:9/9 Traceroute to 中国 北京 移动 (TCP Mode, Max 30 Hop, IPv4) ============================================================ traceroute to 221.130.33.1 (221.130.33.1), 30 hops max, 32 byte packets 1 91.201.64.57 0.47 ms AS56630 意大利, 西西里大区, 巴勒莫广域市, melbicom.net 2 195.22.198.24 0.77 ms AS6762 意大利, 西西里大区, 巴勒莫广域市, tisparkle.com 3 195.22.196.7 31.42 ms AS6762 意大利, 伦巴第大区, 米兰广域市, tisparkle.com 4 62.115.149.0 54.87 ms AS1299 德国, 黑森州, 法兰克福, telia.com 5 62.115.114.90 38.46 ms AS1299 德国, 黑森州, 法兰克福, telia.com 6 62.115.123.13 45.14 ms AS1299 法国, 法兰西岛大区, 巴黎, telia.com 7 62.115.135.24 52.08 ms AS1299 英国, 伦敦, telia.com 8 62.115.112.63 57.25 ms AS1299 英国, 伦敦, telia.com 9 62.115.171.223 54.40 ms AS1299 英国, 伯克郡, 斯劳, telia.com 10 223.120.10.197 47.00 ms AS58453 英国, 伦敦, chinamobile.com, 移动 11 223.120.15.10 326.06 ms AS58453 中国, 北京, chinamobile.com, 移动 12 223.120.22.18 233.24 ms AS58453 中国, 北京, chinamobile.com, 移动 13 221.183.55.106 229.96 ms AS9808 中国, 北京, chinamobile.com, 移动 14 221.183.25.201 343.01 ms AS9808 中国, 北京, chinamobile.com, 移动 15 221.183.89.102 356.88 ms AS9808 中国, 北京, chinamobile.com, 移动 16 221.183.76.78 361.93 ms AS9808 中国, 北京, chinamobile.com, 移动 17 * 18 211.136.58.118 344.88 ms AS56048 中国, 北京, chinamobile.com, 移动 19 221.130.33.1 341.42 ms AS56048 中国, 北京, chinamobile.com, 移动 [信息] 回程路由路径已保存在 /root/AutoTrace_Mtr.log 中,如不需要请自行删除 ! [信息] 已删除 BestTrace 文件
2、Nexttrace模式完整测试结果展示:
Num:1/9 Traceroute to 中国 广州 电信 (TCP Mode, Max 30 Hop, IPv4) ============================================================ NextTrace v1.1.3 2023-03-03T07:53:20Z ead7ebb [NextTrace API] prefered API IP - 104.26.8.231 - 1.32ms IP Geo Data Provider: LeoMoeAPI traceroute to 14.215.116.1, 30 hops max, 32 byte packets 1 * 2 10.8.7.6 * [RFC1918] 局域网 7.98 ms 3 * 4 * 5 * 6 219.158.6.5 AS4837 [CU169-BACKBONE] 中国 上海市 chinaunicom.cn 联通 160.74 ms 7 219.158.19.74 AS4837 [CU169-BACKBONE] 中国 上海市 chinaunicom.cn 联通 166.56 ms 8 * 9 * 10 * 11 * 12 * 13 113.96.4.70 AS4134 [CHINANET-GD] 中国 广东省 广州市 chinatelecom.com.cn 电信 173.04 ms 14 113.96.4.230 AS4134 [CHINANET-GD] 中国 广东省 广州市 chinatelecom.com.cn 电信 180.31 ms 15 183.56.128.2 AS4134 [APNIC-AP] 中国 广东省 广州市 chinatelecom.com.cn 电信 167.21 ms 16 14.215.116.1 AS4134 中国 广东省 广州市 chinatelecom.com.cn 电信 175.74 ms Num:2/9 Traceroute to 中国 江苏 电信 (TCP Mode, Max 30 Hop, IPv4) ============================================================ NextTrace v1.1.3 2023-03-03T07:53:20Z ead7ebb [NextTrace API] prefered API IP - 104.26.9.231 - 1.25ms IP Geo Data Provider: LeoMoeAPI traceroute to 58.215.144.100, 30 hops max, 32 byte packets 1 * 2 10.5.4.3 * [RFC1918] 局域网 0.72 ms 3 * 4 * 5 * 6 219.158.97.177 AS4837 [CU169-BACKBONE] 中国 上海市 chinaunicom.cn 联通 174.05 ms 7 219.158.113.122 AS4837 [CU169-BACKBONE] 中国 上海市 chinaunicom.cn 联通 178.77 ms 8 * 9 219.158.104.218 AS4837 [CU169-BACKBONE] 中国 江苏省 chinaunicom.cn 联通 176.59 ms 10 * 11 * 12 * 13 221.228.244.2 AS4134 [CHINANET-JS] 中国 江苏省 无锡市 chinatelecom.com.cn 电信 170.56 ms 14 61.177.113.94 AS23650 中国 江苏省 无锡市 chinatelecom.cn 电信 178.17 ms 15 221.228.1.250 AS4134 [CHINANET-JS] 中国 江苏省 无锡市 chinatelecom.com.cn 电信 181.18 ms 16 * 17 * 18 * 19 58.215.144.100 AS23650 [CHINANET-JS] 中国 江苏省 无锡市 chinatelecom.cn 电信 167.88 ms Num:3/9 Traceroute to 中国 北京 电信 (TCP Mode, Max 30 Hop, IPv4) ============================================================ NextTrace v1.1.3 2023-03-03T07:53:20Z ead7ebb [NextTrace API] prefered API IP - 104.26.8.231 - 1.53ms IP Geo Data Provider: LeoMoeAPI traceroute to 219.141.147.210, 30 hops max, 32 byte packets 1 * 2 10.9.8.7 * [RFC1918] 局域网 0.63 ms 3 * 4 * 5 * 6 62.115.185.213 AS1299 [ARELION-NET] 美国 加利福尼亚州 洛杉矶 Telia-CT-Peer arelion.com 13.90 ms 7 * 8 * 9 202.97.34.73 AS4134 [CHINANET-BB] 中国 北京市 chinatelecom.com.cn 电信 154.71 ms 10 * 11 * 12 106.120.254.2 AS4847 [CHINANET-GD] 中国 北京市 chinatelecom.cn 166.34 ms 13 219.141.147.210 AS4847 [CHINATELECOM-BJ] 中国 北京市 chinatelecom.cn 185.23 ms Num:4/9 Traceroute to 中国 福州 联通 (TCP Mode, Max 30 Hop, IPv4) ============================================================ NextTrace v1.1.3 2023-03-03T07:53:20Z ead7ebb [NextTrace API] prefered API IP - 104.19.28.108 - 1.25ms IP Geo Data Provider: LeoMoeAPI traceroute to 36.248.43.210, 30 hops max, 32 byte packets 1 * 2 10.9.8.7 * [RFC1918] 局域网 0.78 ms 3 * 4 * 5 * 6 219.158.97.181 AS4837 [CU169-BACKBONE] 中国 上海市 chinaunicom.cn 联通 159.24 ms 7 219.158.19.78 AS4837 [CU169-BACKBONE] 中国 上海市 chinaunicom.cn 联通 157.76 ms 8 * 9 219.158.106.38 AS4837 [CU169-BACKBONE] 中国 福建省 chinaunicom.cn 联通 156.73 ms 10 58.22.110.206 AS4837 中国 福建省 福州市 chinaunicom.cn 联通 158.24 ms 11 * 12 * 13 * 14 36.248.43.210 AS4837 中国 福建省 福州市 chinaunicom.cn 联通 167.58 ms Num:5/9 Traceroute to 中国 无锡 联通 (TCP Mode, Max 30 Hop, IPv4) ============================================================ NextTrace v1.1.3 2023-03-03T07:53:20Z ead7ebb [NextTrace API] prefered API IP - 104.26.8.231 - 1.12ms IP Geo Data Provider: LeoMoeAPI traceroute to 153.35.105.70, 30 hops max, 32 byte packets 1 * 2 10.8.7.6 * [RFC1918] 局域网 0.81 ms 3 * 4 * 5 * 6 219.158.97.177 AS4837 [CU169-BACKBONE] 中国 上海市 chinaunicom.cn 联通 173.22 ms 7 219.158.6.157 AS4837 [CU169-BACKBONE] 中国 上海市 chinaunicom.cn 联通 177.47 ms 8 219.158.7.125 AS4837 [CU169-BACKBONE] 中国 上海市 chinaunicom.cn 联通 173.50 ms 9 219.158.102.126 AS4837 [CU169-BACKBONE] 中国 江苏省 chinaunicom.cn 联通 174.86 ms 10 153.35.77.42 AS140716 中国 江苏省 无锡市 cnispgroup.com 联通 180.95 ms 11 * 12 * 13 11.184.62.173 * [DOD] 局域网 179.75 ms 14 153.35.105.70 AS140716 中国 江苏省 无锡市 cnispgroup.com 联通 172.99 ms Num:6/9 Traceroute to 中国 北京 联通 (TCP Mode, Max 30 Hop, IPv4) ============================================================ NextTrace v1.1.3 2023-03-03T07:53:20Z ead7ebb [NextTrace API] prefered API IP - 104.19.28.108 - 1.45ms IP Geo Data Provider: LeoMoeAPI traceroute to 202.106.50.1, 30 hops max, 32 byte packets 1 * 2 10.8.7.6 * [RFC1918] 局域网 0.55 ms 3 * 4 * 5 * 6 219.158.97.177 AS4837 [CU169-BACKBONE] 中国 上海市 chinaunicom.cn 联通 173.15 ms 7 219.158.6.157 AS4837 [CU169-BACKBONE] 中国 上海市 chinaunicom.cn 联通 178.51 ms 8 * 9 219.158.7.233 AS4837 [CU169-BACKBONE] 中国 北京市 chinaunicom.cn 联通 190.22 ms 10 125.33.186.158 AS4808 [UNICOM-BJ] 中国 北京市 chinaunicom.cn 联通 198.11 ms 11 202.106.50.1 AS4808 [UNICOM-BJ] 中国 北京市 chinaunicom.cn 联通 193.47 ms Num:7/9 Traceroute to 中国 贵阳 移动 (TCP Mode, Max 30 Hop, IPv4) ============================================================ NextTrace v1.1.3 2023-03-03T07:53:20Z ead7ebb [NextTrace API] prefered API IP - 104.19.29.108 - 1.28ms IP Geo Data Provider: LeoMoeAPI traceroute to 211.139.0.10, 30 hops max, 32 byte packets 1 * 2 10.5.4.3 * [RFC1918] 局域网 0.48 ms 3 * 4 * 5 * 6 219.158.104.109 AS4837 [CU169-BACKBONE] 中国 上海市 chinaunicom.cn 联通 159.91 ms 7 219.158.113.126 AS4837 [CU169-BACKBONE] 中国 上海市 chinaunicom.cn 联通 153.98 ms 8 219.158.113.101 AS4837 [CU169-BACKBONE] 中国 上海市 chinaunicom.cn 联通 160.76 ms 9 219.158.102.226 AS4837 [CU169-BACKBONE] 中国 贵州省 chinaunicom.cn 联通 177.66 ms 10 * 11 221.183.95.129 AS9808 [CMNET] 中国 贵州省 chinamobile.com 移动 168.97 ms 12 221.183.90.169 AS9808 [CMNET] 中国 贵州省 chinamobile.com 移动 187.93 ms 13 211.139.0.10 AS9808 [CMNET] 中国 贵州省 贵阳市 chinamobile.com 移动 181.50 ms Num:8/9 Traceroute to 中国 南京 移动 (TCP Mode, Max 30 Hop, IPv4) ============================================================ NextTrace v1.1.3 2023-03-03T07:53:20Z ead7ebb [NextTrace API] prefered API IP - 104.19.28.108 - 1.37ms IP Geo Data Provider: LeoMoeAPI traceroute to 39.134.69.205, 30 hops max, 32 byte packets 1 * 2 10.8.7.6 * [RFC1918] 局域网 1.20 ms 3 * 4 * 5 * 6 219.158.97.177 AS4837 [CU169-BACKBONE] 中国 上海市 chinaunicom.cn 联通 170.02 ms 7 219.158.113.118 AS4837 [CU169-BACKBONE] 中国 上海市 chinaunicom.cn 联通 175.28 ms 8 219.158.113.105 AS4837 [CU169-BACKBONE] 中国 上海市 chinaunicom.cn 联通 173.43 ms 9 219.158.97.54 AS4837 [CU169-BACKBONE] 中国 江苏省 chinaunicom.cn 联通 183.27 ms 10 * 11 * 12 * 13 221.183.59.50 AS9808 [CMNET] 中国 江苏省 chinamobile.com 移动 187.12 ms 14 183.207.22.42 AS56046 [APNIC-AP] 中国 江苏省 南京市 chinamobile.com 移动 186.42 ms 15 183.207.19.82 AS56046 [APNIC-AP] 中国 江苏省 无锡市 chinamobile.com 移动 189.04 ms 16 183.207.32.146 AS56046 [APNIC-AP] 中国 江苏省 无锡市 chinamobile.com 移动 185.28 ms 17 39.134.69.205 AS56046 中国 江苏省 南京市 chinamobile.com 移动 187.76 ms Num:9/9 Traceroute to 中国 北京 移动 (TCP Mode, Max 30 Hop, IPv4) ============================================================ NextTrace v1.1.3 2023-03-03T07:53:20Z ead7ebb [NextTrace API] prefered API IP - 104.19.29.108 - 1.22ms IP Geo Data Provider: LeoMoeAPI traceroute to 221.130.33.1, 30 hops max, 32 byte packets 1 * 2 10.9.8.7 * [RFC1918] 局域网 0.53 ms 3 * 4 * 5 * 6 219.158.116.233 AS4837 [CU169-BACKBONE] 中国 上海市 chinaunicom.cn 联通 184.10 ms 7 219.158.19.86 AS4837 [CU169-BACKBONE] 中国 上海市 chinaunicom.cn 联通 187.80 ms 8 219.158.19.81 AS4837 [CU169-BACKBONE] 中国 上海市 chinaunicom.cn 联通 186.22 ms 9 * 10 219.158.102.202 AS4837 [CU169-BACKBONE] 中国 北京市 chinaunicom.cn 联通 209.02 ms 11 * 12 221.183.94.41 AS9808 [CMNET] 中国 北京市 chinamobile.com 移动 208.35 ms 13 221.183.76.102 AS9808 [CMNET] 中国 北京市 chinamobile.com 移动 195.02 ms 14 * 15 211.136.58.118 AS56048 [CMNET] 中国 北京市 chinamobile.com 移动 194.87 ms 16 211.136.58.118 AS56048 [CMNET] 中国 北京市 chinamobile.com 移动 195.77 ms 17 221.130.33.1 AS56048 [CMNET] 中国 北京市 chinamobile.com 移动 195.71 ms [信息] 回程路由路径已保存在 /root/AutoTrace_Mtr.log 中,如不需要请自行删除 ! [信息] 已删除 Nexttrace 文件
三、其他Linux服务器一键回程路由测试脚本
下面两个回程路由追踪测试脚本也是博主使用比较多的两个脚本!其中“Linux系统服务器回程路由追踪测试工具_Linux服务器回程路由一键追踪脚本_电信联通移动回程路由追踪教程”脚本也是博主自己修改的,目前支持电信、联通、移动、教育网四网20多个节点的回程路由追踪测试。有兴趣的可以自己查看文章去关注。
